Pneumatic Tools - mdi

Pneumatic Tools

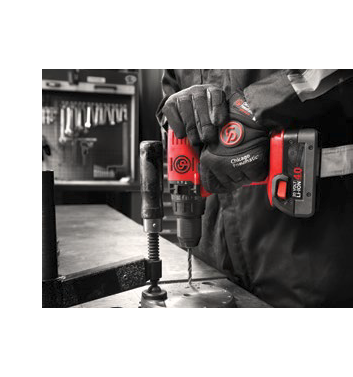

CP8548

1/2" Hammer Drill Driver

CP8548 Cordless Hammer Drill Drivers from Chicago PneumaticCP8548 Cordless Hammer Drill Drivers from Chicago Pneumatic

Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic
60 ft. lb
82 Nm		 0-450
0-1,600		 5.3 lb
2.4 kg		 Reduced Vibration LED Lit 1/2"
12.7 mm		 Hammer-Driven 1/2"
13 mm		 5/16"
8 mm		 Charge Gauge

Strong and Versatile

  • ½" spindle lock and keyless chuck
  • Max. torque: 60 ft.lb/82 Nm
  • 5.3 lb/2.4 kg
  • 9.3 in/237 mm length
  • 20-Volt CP20XP Lithium-ion 4Ah battery

Power

  • Max. torque: 60 ft.lb/82 Nm
  • Frameless motor

Performance

  • 0-450/0-1,600 RPM
  • 2-speed metal gearbox

Run Time: CP12XP Battery

  • 4Ah battery
  • 20-Volt Lithium-ion
  • Charge gauge
  • Rubber battery dampeners absorb impacts and shocks

Handling

  • Multi-position
  • Composite side handle

Range of Applications

  • 24-stage torque adjustment
  • 3 modes (screwing, drilling and hammer drilling)

Convenience

  • Independent LED lighting for dimly lit work surfaces
  • Easy side-to-side forward/reverse switch
  • Electronic trigger with variable speed

Comfort

  • Ergonomic handle fits your hand perfectly
  • Thermo Plastic Rubber (TPR) over molded handle
CP8548 Part Number Chuck Free Speed 1st / 2nd Gear Percussion Under Load 1st / 2nd Gear Max. Torque Drilling Capacity IN Wood Screws (without pre-drilling) Weight With / Without Battery Sound Level / Power Vibration Drilling Into Vibration Screwing Battery
Steel Wood Brick & Tile Concrete Metal
in mm RPM BPM ft. lb Nm in mm in mm in mm in mm ln kg dB(A) m/s2-k m/s2-k m/s2-k V Ah
20V ½" HAMMER DRILL DRIVER BARE TOOL 8941085489 1/16 - 1/2 1.5 - 13 0 - 450/ 0 - 1,600 7,200/ 25,600 60 82 1/2 13 2.16 55 2/3 16 5/16 8 5.3/ 3.7 2.4/ 1.68 87.5/ 98.5 8.3 (1.5) 2.5 (1.5) 0.5 (1.5) 20 4
20V ½" HAMMER DRILL DRIVER PACK* 8941085480
20V ½" HAMMER DRILL DRIVER PACK US* 8941085481

Sound and vibration values are according to noise and vibration statement (EN60745). All values are current as of the date of this publication.
* Tool packs come with 2 batteries and 1 charger. Extra individual batteries and chargers are available.

CP8528

3/8" Drill Driver

CP8528 Cordless Drill Drivers from Chicago PneumaticCP8528 Cordless Hammer Drill Drivers from Chicago Pneumatic

Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic Features of the CP8848 1/2" Impact Wrench from Chicago Pneumatic
24 ft. lb
34 Nm		 0-350
0-1,500		 2.6 lb
1.2 kg		 Reduced Vibration LED Lit 3/8"
12.7 mm		 25/64"
10 mm		 15/64"
6 mm

Ultra Compact and Lightweight

  • ⅜" spindle lock and keyless chuck
  • Max. torque: 24 ft.lb/34 Nm
  • 2.6 lb/1.2 kg
  • 6.9 in/171 mm length
  • 12-Volt CP12XP Lithium-ion 1.5Ah battery

Power

  • Max. torque: 24 ft.lb/34 Nm

Performance

  • 0-350/0-1,500 RPM
  • 2-speed metal gearbox

Run Time: CP12XP Battery

  • 1.5Ah battery
  • 12-Volt Lithium-ion
  • Rubber dampeners absorb impacts and shocks

Ultra Compact

  • 6.9 in/171 mm length

Range of Applications

  • 17-stage torque adjustment plus 1 drilling stage

Convenience

  • LED lighting for dimly lit work surfaces
  • Easy side-to-side forward/reverse switch
  • Electronic trigger with variable speed

Comfort

  • Ergonomic handle fits your hand perfectly
  • Thermo Plastic Rubber (TPR) over molded handle
CP8528 Part Number Chuck Free Speed 1st / 2nd Gear Max. Torque Drilling Capacity IN Wood Screws (without pre-drilling) Weight With Battery Weight Without Battery Length Sound Level Sound Power Vibration Drilling Into Metal Vibration Screwing Battery
in mm RPM ft. lb Nm in mm in mm in mm ln kg ln kg in mm dB(A) dB(A) m/s2-k m/s2-k V Ah
12V ⅜" DRILL DRIVER BARE TOOL 8941085289 1/16 - 3/8 1.5 - 10 0 - 350/ 0 - 1,500 24 34 0.39 10 0.78 20 0.23 6 2.62 1.19 2.2 1 6.9 171 68.5 78.5 1.1 (1.5) 0.4 (1.5) 12 1.5
12V ⅜" DRILL DRIVER PACK* 8941085280
12V ⅜" DRILL DRIVER PACK US* 8941085281

Sound and vibration values are according to noise and vibration statement (EN60745). All values are current as of the date of this publication.
* Tool packs come with 2 batteries and 1 charger. Extra individual batteries and chargers are available.
